40m upgrade installation plan

Past_Plans

Main optics team

• IOO work

  • [DONE] Moving faraday and input optics

• MMT placement / initial pointing adjustment

  • [DONE] MC trans beam mode measurement

  • [DONE] Renew the MMT solution

  • [DONE] MMT placement

  • [DONE] Corridor projection ~ measuremnt & adjustment

  • [DONE] Initial Pointing adjustment

• [DONE] ITMX/Y oplev

• SRM/PRM/BS placement

  • [DONE] What to do before the SRM/PRM/BS placement?

  • [DONE] TT ==> TT preparations

• [DONE] AUX optics alignment

• [DONE] Closing up the vacuum

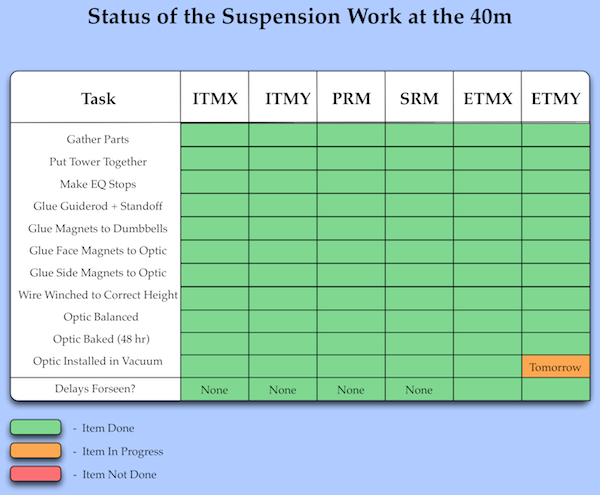

Suspension preparation

Green team

• before vent

  • relocation of existing optics at the end table -take 1.5day

• during vent

  • PLL measurement (9 Mar - 9? Apr)
  • set up the green stuff onto the end table
  • align the green laser to the cavity
    • how to: visual alignment
  • mode matching of the green laser to the cavity

    • on the table / corridor projection test ==> sliding mount

• after tank evacuation

  • recover IP-ANG and optical levers

CDS team

• 2/22-3/5 Delivery of some computers? / CDS software installations?
• -3/31 Installation for some of the suspensions?

RF team

• Conversion of the RF Photodetectors as in the table here

  • Removal of the photodetectors from the optics tables: REFL33 (PD2), REFL199 (PD6), REFL166 (PD11), AS166 (PD1), AS133 (PD9), POX33 (PD3), POY33 (PD4), PO133 (PD7-8), PO199 (PD7-8)
  • Replacement of the diodes: 2mm PDs for REFL11 (AM Monitor PD), REFL33 (PD2), REFL55 (PD6), AS55 (PD9) , POX11 (PD3) , POY11 (PD4); 1mm for REFL166(PD11), AS166(PD1), POP22-POP110(PD7-8)
  • Adjustment for PDs' boards for the change of capacitance due to the new diodes
  • Tune the resonant frequencies of the the old SPOB66, PD6, PD9, PD3, PD4, PD7-8
• Modification of the demod board
  • Installation of the low/high/band pass filters

• Prepare for building the RF Modulation Generator Box and of RF Distribution Box

  • RG-174 cables for the internal wiring
  • prepare the powering system
  • get RG-174 cables for the internal wiring
  • get 2 aluminum slabs from the machine shop
• Commissioning of AS55 PD
• Improvement of the REFL55 PD response
• Improvement of REFL11 PD by introducing and additional notch at 55MHz
• Commissioning of POX and POY PDs
• Design and commissioning of SPOB
• Design and commissioning of 3f PDs:
  • REFL33
  • REFL165
  • AS165
• Construction of the frequency generation box
• Continuing construction of frequency generation box
• Commissioning of the frequency generation

• construction and commissioning of the frequency distribution box for the LSC rack

• modification of the demod boards
• commissioning of the frequency distribution system
• LSC rack cabling and setup
  • Clearing of the old cabling
  • Cabling to the EOM
  • Cabling to the LSC Rack
  • Installation of the new modulation and demodulation chassis
• EOM installation
