We have 1 magnetometer. It is a 3-axis fluxgate magnetometer (Bartington Mag-03MC100 Sensor).

brochure.pdf

manual.pdf


Kevin's Magnetic Measurements:

Since Kevin used the above fluxgate seismometer, we can convert his voltage measurements (below) into magnetic field by using the manual's guess of 10 uT /V or 10 V/Gauss.

AC Measurements: magneticmeasurements1.zip

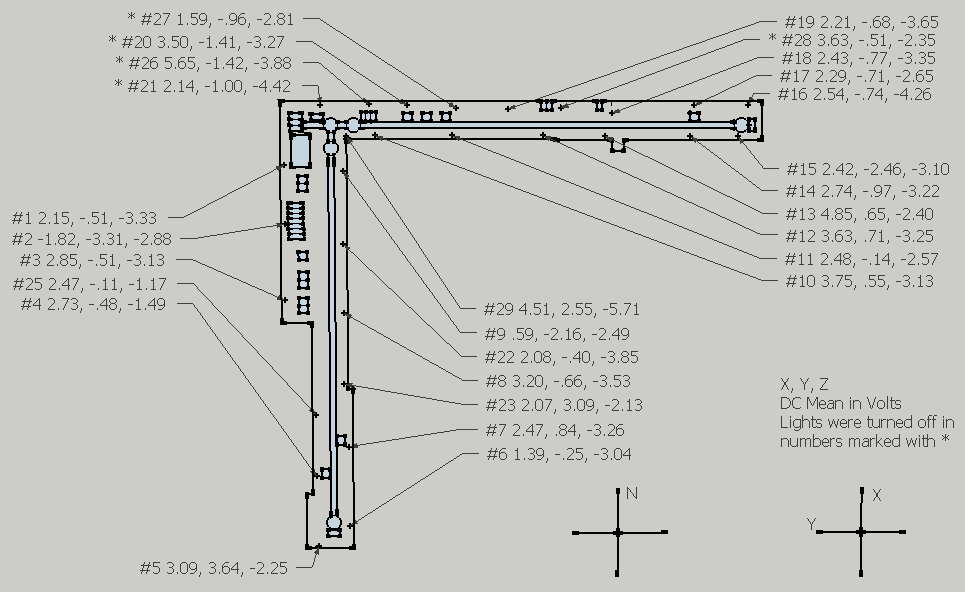

DC Measurements: magneticmeasurements2.zip
