finesse code. Use mkat for running

Power budget

DRFPMI


- The modulation depths of 0.1 was assumed.

- Loss of 50ppm per bounce was assumed. => Arm cavity reflectivity 96.8%

- Power Recycling Gain: Carrier: 28, f1: 68, f2: 21

Optical transfer functions

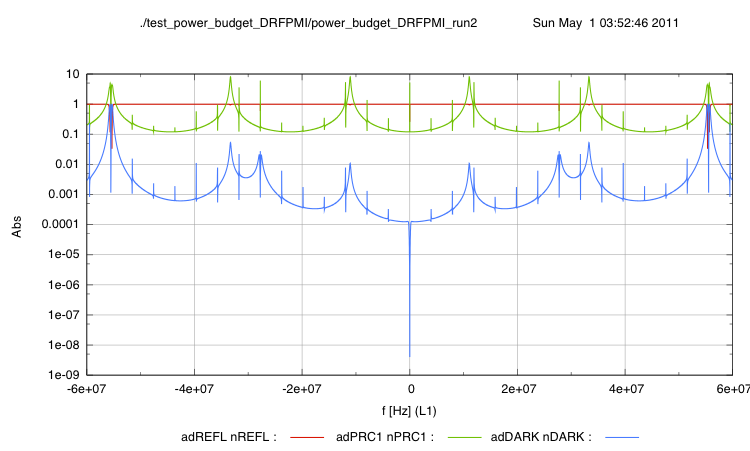

power_budget_DRFPMI_run1.png power_budget_DRFPMI_run2.png

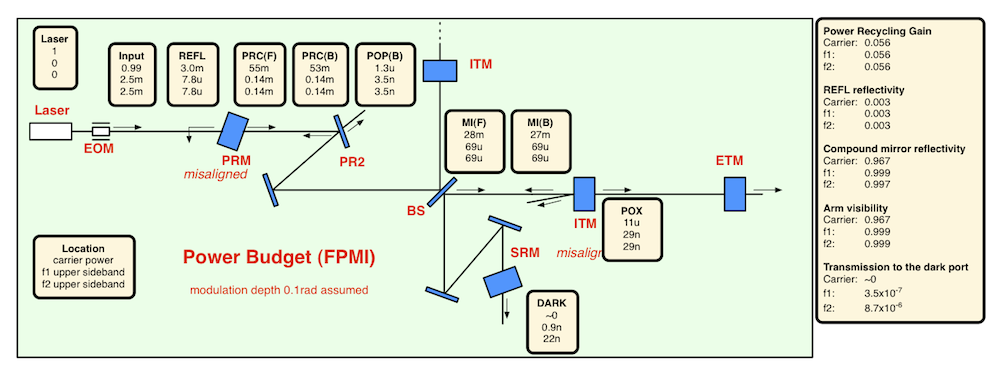

FPMI


Optical transfer functions

power_budget_FPMI_run1.png power_budget_FPMI_run2.png

DRMI


Optical transfer functions

power_budget_DRMI_run1.png power_budget_DRMI_run2.png

PRMI


Optical transfer functions

power_budget_PRMI_run1.png power_budget_PRMI_run2.png
