REFL33
Modification history
- Previously used as MZ 29.5MHz PD
- Aug 1, 2011 built by Koji
- Aug 8, 2011 characterized by Koji
Schematic
Characteristics
- DC output / transimpedance: 50 V/A
- RF output / transimpedance: 2.14 kV/A (on a 50 Ohm load)

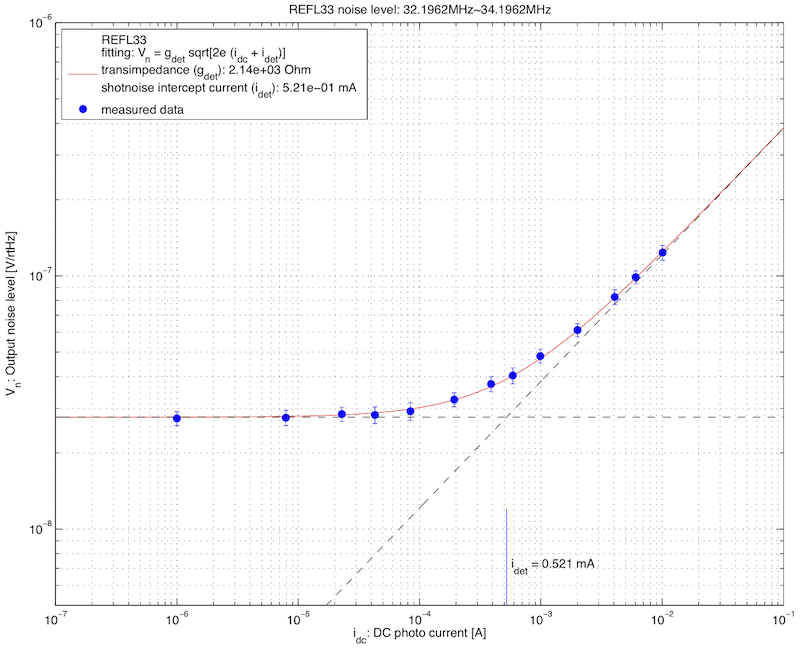

- RF ouput / shotnoise intercept current: 0.52mA
LISO fitting
LISO fitting of the RF transimpedance
LISO source file
zero 48.4837164240k ### fitted (name = zero0) zero 47.6421904694k ### fitted (name = zero1) zero 10.9677397339M 22.3419521997 ### fitted (name = zero2) zero 55.5961765151M 42.4503277372 ### fitted (name = zero3) zero 332.3872462316M 267.3831513309m ### fitted (name = zero4) zero 1.4185960343M 3.9956647440 ### fitted (name = zero5) pole 153.7417214199k ### fitted (name = pole0) pole 11.5953450163M 2.5461490451 ### fitted (name = pole1) pole 33.1799930023M 6.0103029642 ### fitted (name = pole2) pole 62.3400075908M 6.5498896913 ### fitted (name = pole3) pole 301.7039940564M 3.0443589747 ### fitted (name = pole4) pole 79.9674384577M 552.7732144606m ### fitted (name = pole5) pole 670.8664623563k 2.3150918157 ### fitted (name = pole6) factor 780.8469757726m ### fitted delay 0.3586979414f ### fitted param zero0:f 10k 100M param zero1:f 10k 10G param zero2:f 10M 100M param zero2:q 0.1 100 param zero3:f 10M 1000M param zero3:q 0.1 100 param zero4:f 1M 1000M param zero4:q 0.1 100 param zero5:f 1k 1000M param zero5:q 0.1 1G param pole0:f 0k 1G param pole1:f 0 1000M param pole1:q 0.1 1000 param pole2:f 10M 100M param pole2:q 0.1 100 param pole3:f 10M 100M param pole3:q 0.1 100 param pole4:f 10M 1000M param pole4:q 0.1 100 param pole5:f 10M 1000M param pole5:q 0.1 100 param pole6:f 1k 10000M param pole6:q 0.1 100 param factor 1p 1M param delay 0 1m fit REFL33.bod absdeg rel rewrite samebetter gnuterm pdf freq log 100k 500M 2000 ### from data file
